Huixian Xinda Textile Machinery Parts provides C-42 stator stepper (ductile iron) for textile machine multi shuttle accessories, Textile Multi Shuttle Loom Accessories C-42. The thickness of the two circular holes of the C-42 stator stepper in the multi shuttle box is 22mm, and the center to center distance between the two holes is 38mm. The outer width of the adjustment slot is 25mm. The multi shuttle leather knot shaft passes through the two circular holes of the stator stepper C-42 and is fixed on top of the C-41 shuttle box head. The overall installation position is on the outside of the multi shuttle box, and each multi shuttle box uses one of these accessories.

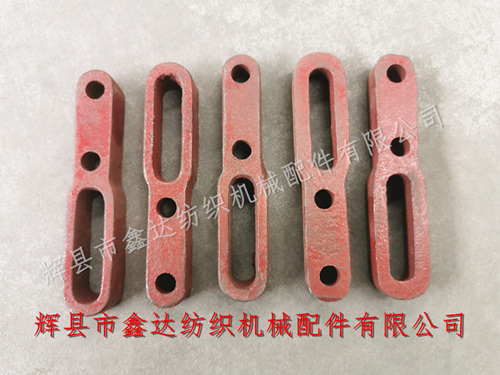

The above figure shows the front and back views of C-42. The stator is not divided into left and right hands, with a total length of 12.5 centimeters; The 1515 multi shuttle accessory is a structural part of a special fabric device in textile machinery, which can be used to weave fabric structures composed of multiple colored weft yarns. It is suitable for use on shuttle looms such as 1511, 1515, GA611, GA615, etc.
The inner diameter of the two circular holes of the stator stepper C-42 is 10 millimeters, and it is installed with tolerance fit with the C-35 leather joint shaft. It belongs to the textile machine accessory of the 214M type C part, as shown in the multi angle view above.
The material of this textile accessory is ductile iron, abbreviated as QT, usually represented by red paint color. If you need to purchase 1515 multi shuttle accessories, 1511 textile accessories, GA615 weaving machine accessories, textile machine steps and other products, please contact Xinda Textile Machinery Accessories in Huixian City for consultation.
