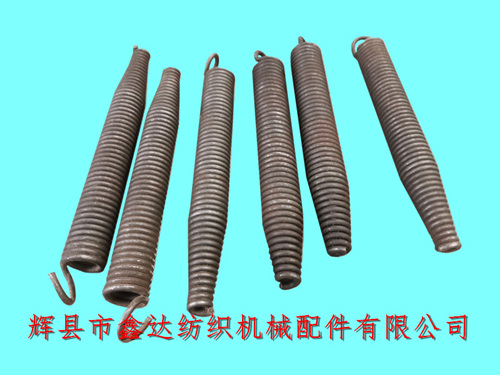

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511/1515/GA615 Loom Spring For Cloth Roller Lever L72/3514. The roller support rod spring model used for GA615 weaving machines is 3514: The Spring For Cloth Roller Lever length of the spring body is 267mm, and the diameter of the spring steel wire is 6mm. The spring used for 1511 weaving machines is L72: the length of the spring body is 282mm, and the diameter of the spring steel wire is 5.5mm. There are multiple models of old weaving machine accessories that can be borrowed from each other, commonly including winding devices and some shuttle feeding components.
The material of the support rod spring L72/3514 for the weaving machine roll is spring steel, and they are used in two quantities on each shuttle machine, installed behind the weaving machine roll shaft. The components of old-fashioned shuttle looms include loom tension springs, compression springs (leaf springs), torsion springs, etc.
The small end of the support rod spring is connected to the L18 fixed foot, and the spring hook of the large end is connected to the belt R35. L72/3514 belongs to the weaving machine tension spring, which is mainly used to provide continuous upward pressure to the winding shaft.
If you need to purchase 1511/1515/GA615 Cloth Roller Lever Springs L72/3514, roll roller springs, weaving machine springs,1511 Loom Spring,1515 Shuttle Loom Cloth Roller Lever Spring, GA615-3514 Spring, textile hardware, support rod springs and other accessories, please contact Mr. Yang from our company for negotiation. We sincerely welcome everyone's visit.
