Huixian Xinda Textile Machinery Parts Co., Ltd. has been providing B5 Let-off Worm Wheel (3 heads) For Looms, B5 warp feeding worm gear (3 heads) 1511/1515 inner warp feeding accessories for a long time. According to the requirements of weaving technology, the speed of warp feeding needs to be adjusted appropriately according to the fabric density material. B5 is divided into single head worm gear, double head worm gear, three head worm gear, four head worm gear and other specifications. Generally, double head worm gear is used, and three head worm gear can accelerate the working speed of the inner warp feeding device, which is suitable for producing high-yield fabric weaving.

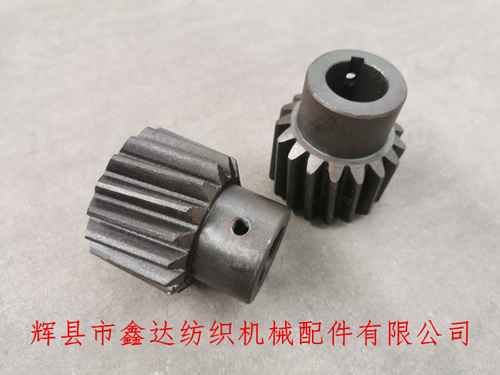

The fixing method of the B5 sending worm gear (three heads): using keyway and support bolt, divided into left and right hands. The left hand B5 is shown on the right side of the picture.
Each 1511 or 1515 warp feeding loom uses one worm wheel B5, and the left and right hands select according to the model of the loom; B5 is a 17 tooth worm gear with a module of 3.63, and its clearance with B19 is required to be controlled between 0.5-0.8mm.
The above picture shows worm B19 and worm wheel B5, which are made of cast steel and have a surface black pigment treated with phosphating; If textile factories, weaving factories, and cotton processing factories need to purchase weaving machine worm gears, warp delivery accessories, 1515 accessories, inner warp delivery accessories, 1511 accessories, and other products, please contact Mr. Yang from our company for negotiation. Thank you for your cooperation!
