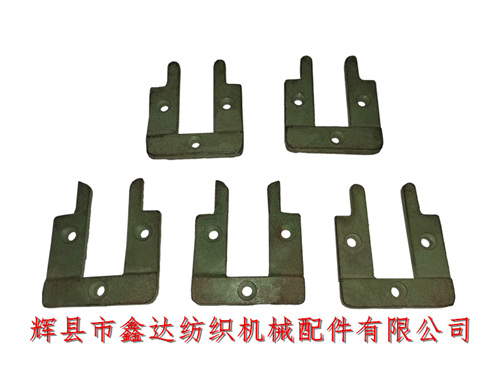

Huixian Xinda Textile Machinery Parts Co., Ltd. provides F47 leather ring guide plate accessories for 1511/1515/GA615 weaving machines,1511/15/GA615 Loom F47 Buffer Guide Plate. The domestically produced shuttle weaving machine accessory - F47 leather ring guide plate has an external length of 76mm and a width of 65mm. It is a protective component installed under both ends of the weaving machine reed frame (dragon) to protect the reed frame from damage during shuttle board reset. The leather ring guide plate is installed on top of the 1511 type Q1. The 1515 type is connected to the 3222 reed bed, and the GA615 type is fixed to the 3106. The number of looms used per machine is 2 PCS.

The F47 leather ring guide plate has three wooden screw fixing holes (inner diameter 5mm), which are fixed with M4 * 16 countersunk wooden screws.

The F47 leather ring guide plate of the weaving machine is not divided into left and right hands, and belongs to the mutual borrowing parts of the 1511/1515/GA615 and other models with shuttle weaving machines. The width of the slot in the middle is 25mm, corresponding to the rod groove of the reed frame wood.

Packaging specifications: 20 pieces/string. If you need to purchase F47 guide plates, textile leather ring guide plates, weaving machine accessories, 1511 accessories, GA615 accessories, 1515 accessories and other products, please contact Mr. Yang from our company for consultation.
